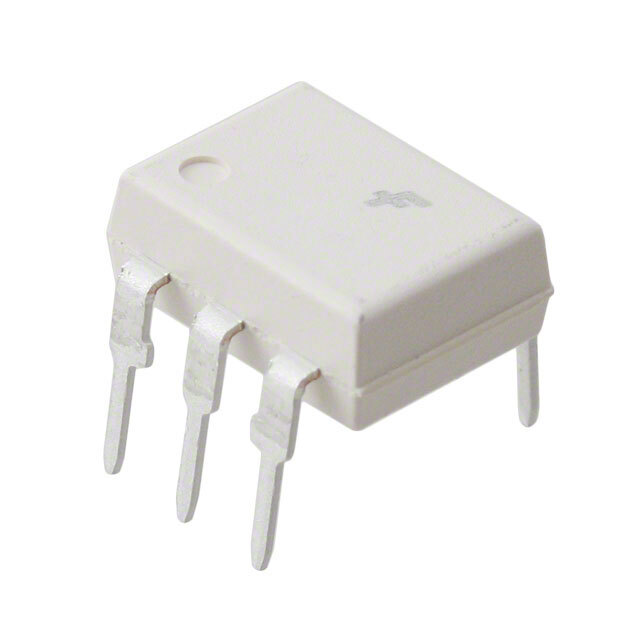

MOC3061M

SKU: 34849

Manufacturer: onsemi

Triac AC-OUT 1-CH 600V 6-Pin PDIP W Tube

115870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Number of Channels per Chip	1
Zero-Crossing Circuit	Yes
Standard	UL
Output Device	Triac
Output Type	AC
Maximum Output Voltage (VAC)	420
Minimum Isolation Voltage (Vrms)	5250
Typical Forward Voltage (V)	1.3
Maximum Forward Voltage (V)	1.5
Repetitive Peak Off-State Voltage (V)	600
Maximum Reverse Voltage (V)	6
Typical Critical Rate of Rise of Off-State Voltage (V/us)	1500
Maximum Forward Current (mA)	60
Minimum Trigger Current (mA)	15(Max)
Repetitive Peak Off-State Current (uA)	0.5
Maximum Power Dissipation (mW)	250
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Standard Package Method	DIP
Original Package	PDIP W
Pin Count	6
Terminal Form	Through Hole
Package Height	3.53(Max)
Package Length	8.89(Max)
Package Width	6.6(Max)
PCB changed	6
