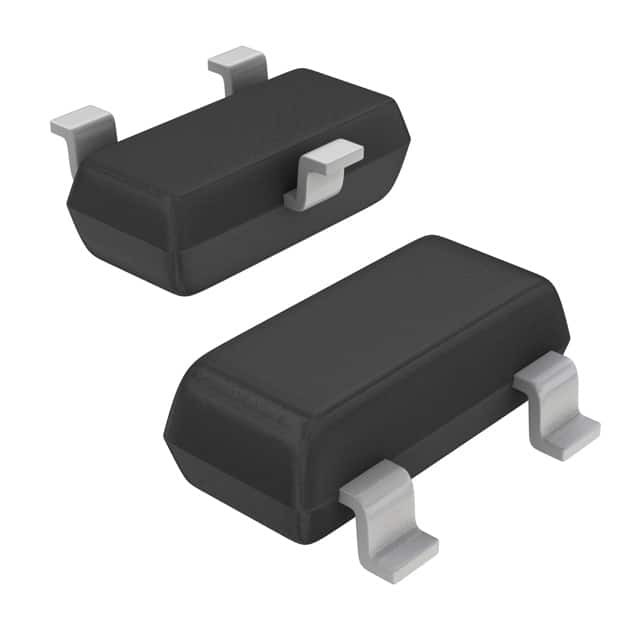

MMBV609LT1

SKU: 16639

Manufacturer: onsemi

Varactor Diode Dual Common Cathode 20V 26pF 3-Pin SOT-23 T/R

640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Tuner
Applications Frequency Range	VHF
Configuration	Dual Common Cathode
Maximum Reverse Voltage (V)	20
Maximum Reverse Current (uA)	0.01
Minimum Tuning Ratio	1.8
Tuning Ratio Test Condition	3V/8V
Minimum Quality Factor	250
Minimum Diode Capacitance (pF)	26@3V
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	0.94
Package Length	2.9
Package Width	1.3
PCB changed	3
