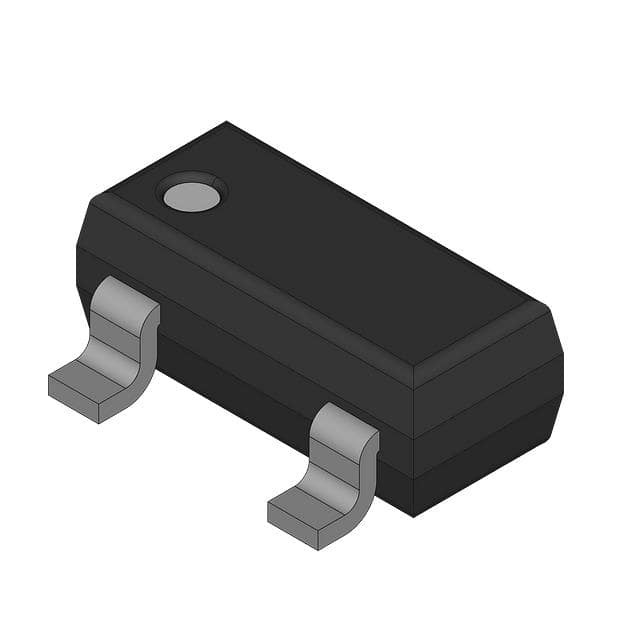

MMBTH10LT1

SKU: 84335

Manufacturer: onsemi

Trans RF BJT NPN 25V 225mW 3-Pin SOT-23 T/R

14850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.21.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	30
Collector-Emitter Voltage-Max (V)	25
Collector-Emitter Voltage Range-Max (V)	30 to 40
Maximum Collector-Emitter Saturation Voltage (V)	0.5@0.4mA@4mA
Maximum Emitter Base Voltage (V)	3
Maximum Emitter Cut-Off Current (nA)	100
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	60@4mA@10V
Minimum DC Current Gain Range	50 to 120
Maximum Junction Ambient Thermal Resistance	556°C/W
Typical Output Capacitance (pF)	0.7(Max)
Maximum Power Dissipation (mW)	225
Maximum Transition Frequency (MHz)	800(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.94
Package Length	2.9
Package Width	1.3
PCB changed	3
