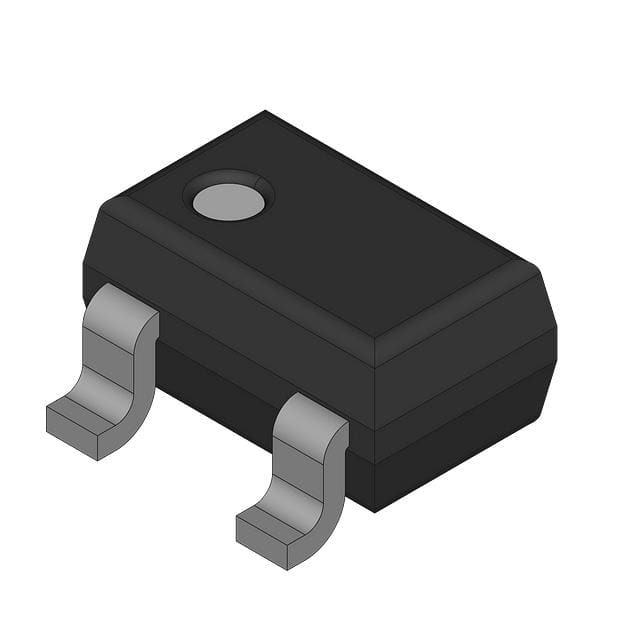

MMBT2907AWT1

SKU: 63214

Manufacturer: onsemi

Trans GP BJT PNP 60V 0.6A 150mW 3-Pin SC-70 T/R

57750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	60
Collector-Emitter Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	1.3@15mA@150mA
Maximum Collector-Emitter Saturation Voltage (V)	0.4@15mA@150mA
Maximum DC Collector Current (A)	0.6
Minimum DC Current Gain	75@0.1mA@10V
Maximum Power Dissipation (mW)	150
Maximum Transition Frequency (MHz)	200(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SC-70
Pin Count	3
Standard Package Method	SOT-323
Terminal Form	Surface Mount
Package Height	0.85
Package Length	2.1
Package Width	1.24
PCB changed	3
