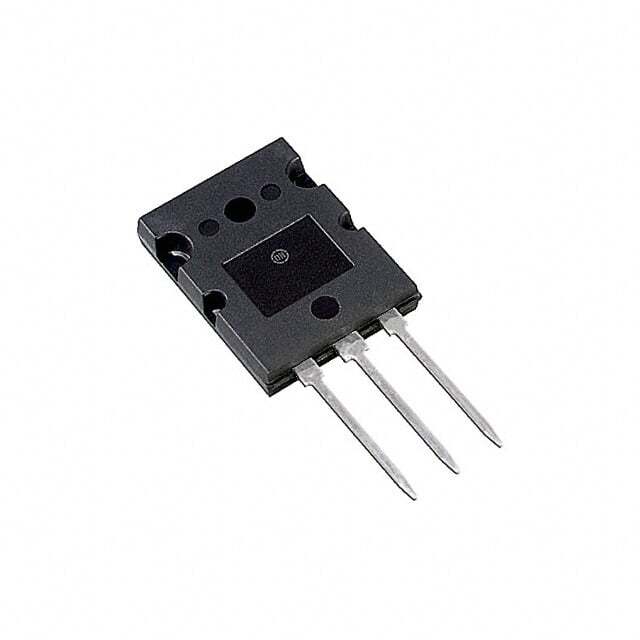

MJL21194

SKU: 34792

Manufacturer: onsemi

Trans GP BJT NPN 250V 16A 200000mW 3-Pin(3+Tab) TO-3BPL Tube

2360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	400
Collector-Emitter Voltage-Max (V)	250
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	1.4@0.8A@8A
Maximum DC Collector Current (A)	16
Minimum DC Current Gain	25@8A@5V
Maximum Power Dissipation (mW)	200000
Maximum Transition Frequency (MHz)	4(Min)
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-3BPL
Pin Count	3
Terminal Form	Through Hole
Package Height	26.4(Max)
Package Length	20.3(Max)
Package Width	5.3(Max)
PCB changed	3
