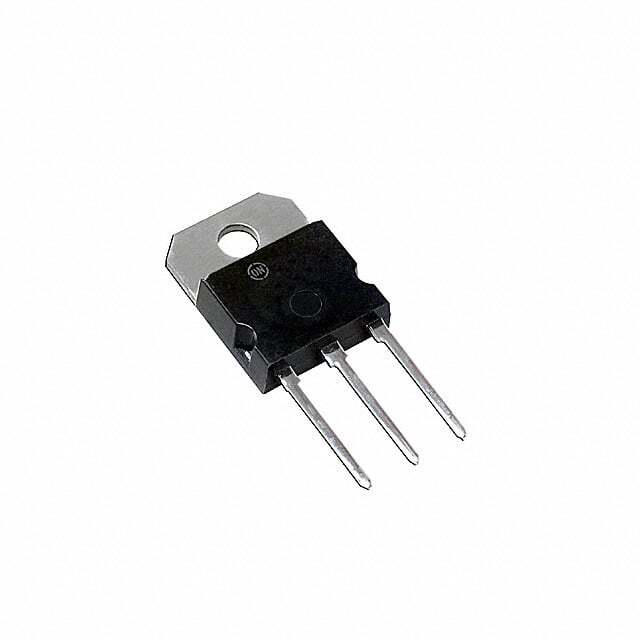

MJH11019

SKU: 84303

Manufacturer: onsemi

Trans Darlington PNP 200V 15A 150000mW 3-Pin(3+Tab) TO-247 Tube

1140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	PNP
Configuration	Single
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	200
Collector Base Voltage-Max (V)	200
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	3.8@150mA@15A
Maximum Continuous DC Collector Current (A)	15
Maximum Collector-Emitter Saturation Voltage (V)	2.5@100mA@10A
Minimum DC Current Gain	100@15A@5V
Maximum Power Dissipation (mW)	150000
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-247
Original Package	TO-247
Terminal Form	Through Hole
Package Height	21.08(Max)
Package Length	16.26(Max)
Package Width	5.3(Max)
PCB changed	3
Tab	Tab
