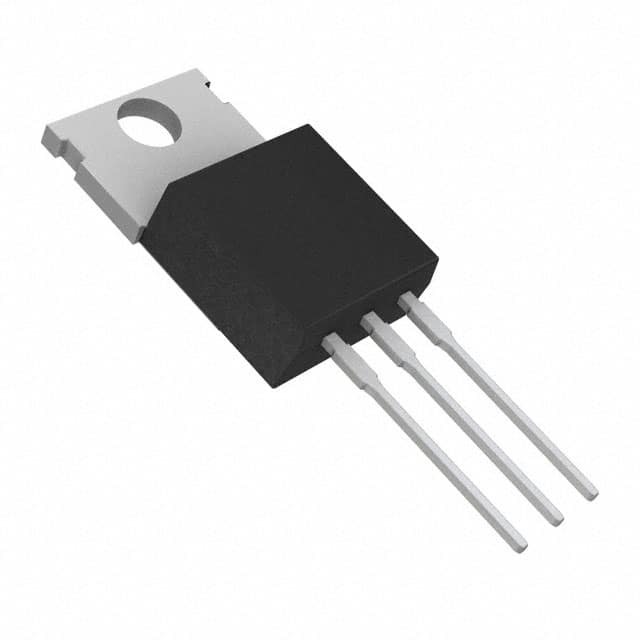

MJE15034

SKU: 56191

Manufacturer: onsemi

Trans GP BJT NPN 350V 4A 2000mW 3-Pin(3+Tab) TO-220AB Tube

30 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	350
Collector-Emitter Voltage-Max (V)	350
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	0.5@0.1A@1A
Maximum DC Collector Current (A)	4
Minimum DC Current Gain	100@100mA@5V
Maximum Power Dissipation (mW)	2000
Maximum Transition Frequency (MHz)	30(Min)
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-220
Original Package	TO-220AB
Terminal Form	Through Hole
Package Height	9.28(Max)
Package Length	10.53(Max)
Package Width	4.83(Max)
PCB changed	3
Tab	Tab
