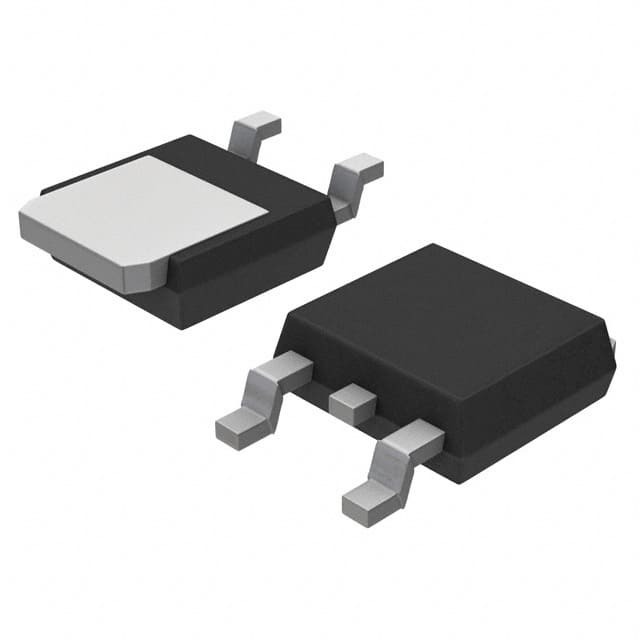

MJD3055

SKU: 126697

Manufacturer: onsemi

Trans GP BJT NPN 60V 10A 1750mW 3-Pin(2+Tab) DPAK Tube

49310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	70
Collector-Emitter Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	8@3.3A@10A
Maximum DC Collector Current (A)	10
Minimum DC Current Gain	5@10A@4V
Maximum Power Dissipation (mW)	1750
Maximum Transition Frequency (MHz)	2(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-252
Original Package	DPAK
Terminal Form	Surface Mount
Package Height	2.38(Max)
Package Length	6.73(Max)
Package Width	6.22(Max)
PCB changed	2
Tab	Tab
