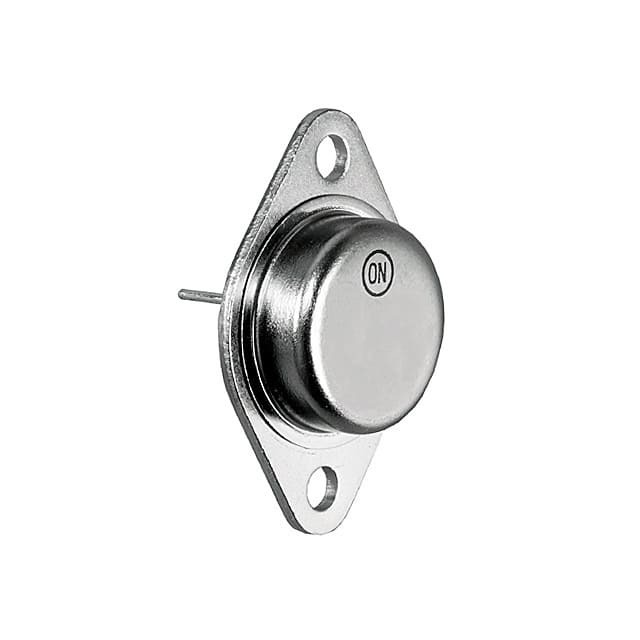

MJ11030

SKU: 126696

Manufacturer: onsemi

Trans Darlington NPN 90V 50A 300000mW 3-Pin(2+Tab) TO-204 Tray

1970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Configuration	Single
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	90
Collector Base Voltage-Max (V)	90
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	3@200mA@25A
Maximum Continuous DC Collector Current (A)	50
Maximum Collector-Emitter Saturation Voltage (V)	2.5@250mA@25A
Minimum DC Current Gain	1000@25A@5V
Maximum Power Dissipation (mW)	300000
Operating Temperature-Min	-55
Operating Temperature-Max	200
Packing Method	Tray
Original Package	TO-204
Pin Count	3
Standard Package Method	TO-3
Terminal Form	Through Hole
Package Height	8.51(Max)
Package Length	38.86
Package Width	26.67(Max)
PCB changed	2
