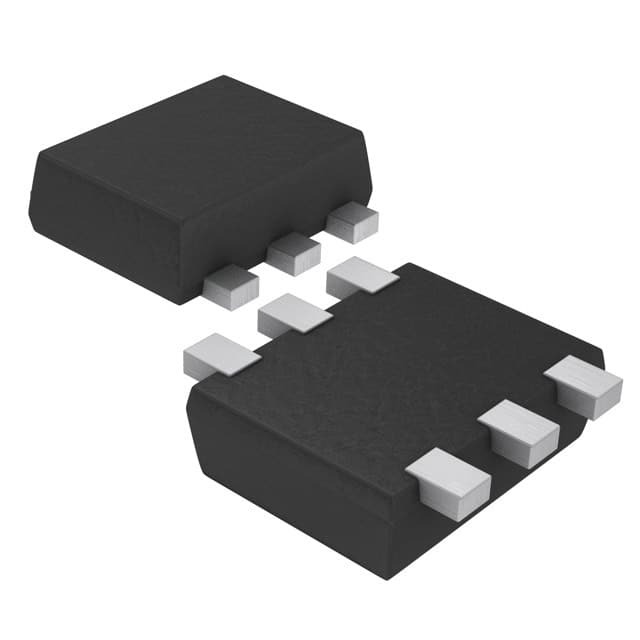

MCH6123-TL-E

SKU: 56029

Manufacturer: onsemi

Trans GP BJT PNP 50V 3A 1000mW 6-Pin MCPH T/R

69040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Power
Configuration	Single Quad Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	50
Collector-Emitter Voltage-Max (V)	50
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	1.2@100mA@2A
Maximum Collector-Emitter Saturation Voltage (V)	0.65@100mA@2A
Maximum DC Collector Current (A)	3
Maximum Collector Cut-Off Current (nA)	1000
Minimum DC Current Gain	200@100mA@2V
Maximum Power Dissipation (mW)	1000
Maximum Transition Frequency (MHz)	390(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	MCPH
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.88(Max)
Package Length	2
Package Width	1.6
PCB changed	6
