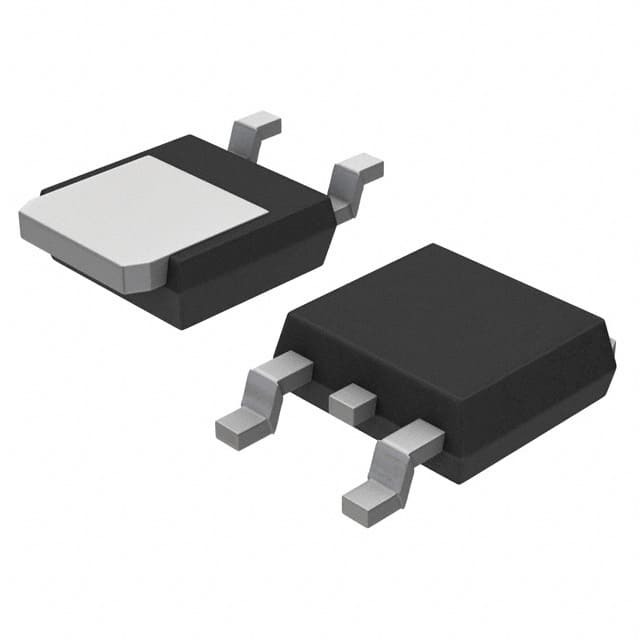

MC79M05CDT

SKU: 41714

Manufacturer: onsemi

Standard Regulator Neg -5V 0.5A 3-Pin(2+Tab) DPAK Tube

2500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Negative
Accuracy (%)	±4
Output Type	Fixed
Output Voltage (V)	-5
Maximum Output Current (A)	0.5(Min)
Maximum Input Voltage (V)	-35
Line Regulation	50mV
Load Regulation	100mV
Junction to Ambient	92°C/W
Junction to Case	6°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tube
Original Package	DPAK
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.38(Max)
Package Length	6.73(Max)
Package Width	6.22(Max)
PCB changed	2
Tab	Tab
