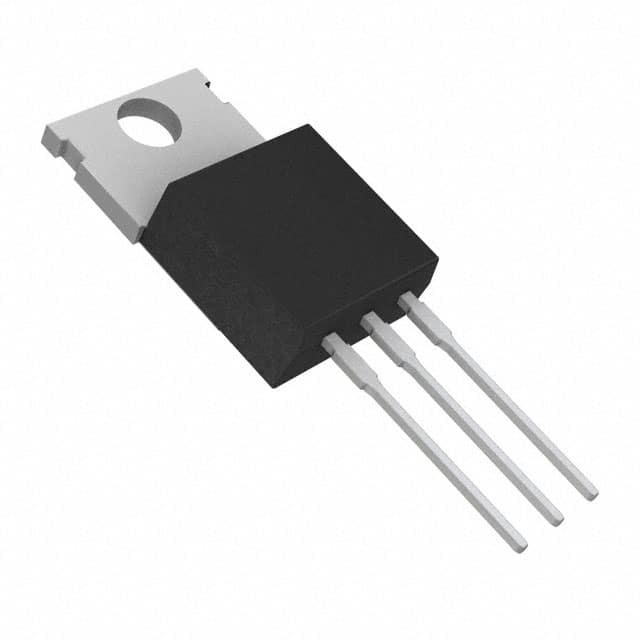

MC7824CT

SKU: 34599

Manufacturer: onsemi

Standard Regulator Pos 24V 1A 3-Pin(3+Tab) TO-220 Tube

4550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±4
Output Type	Fixed
Output Voltage (V)	24
Maximum Output Current (A)	1(Min)
Minimum Input Voltage (V)	7
Maximum Input Voltage (V)	40
Line Regulation	60mV
Load Regulation	65mV
Maximum Quiescent Current (mA)	6.5
Junction to Ambient	65°C/W
Junction to Case	5°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tube
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.28(Max)
Package Length	10.28(Max)
Package Width	4.82(Max)
PCB changed	3
Tab	Tab
