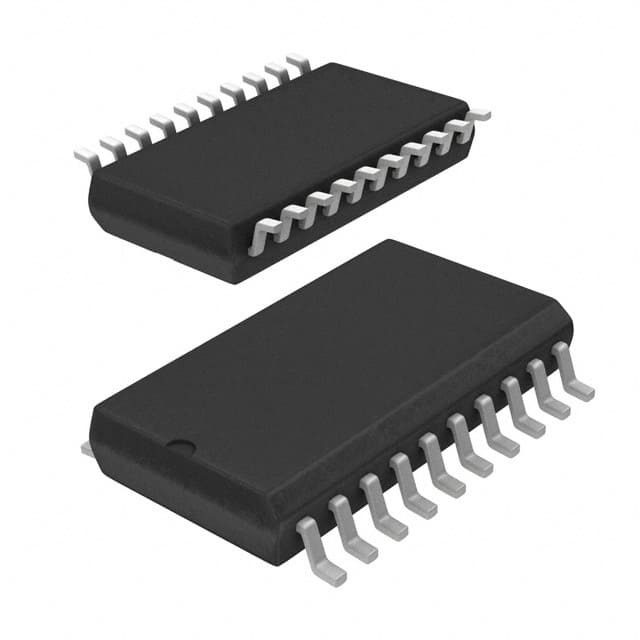

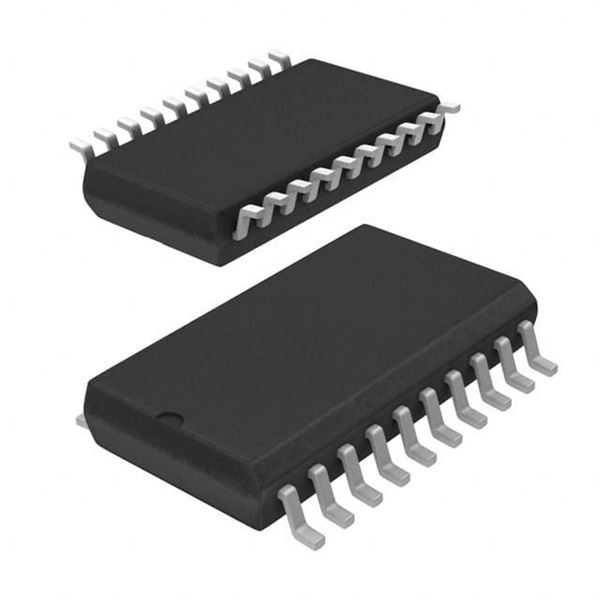

MC74AC245DW

SKU: 119495

Manufacturer: onsemi

Bus XCVR Single 8-CH 3-ST Automotive 20-Pin SOIC W Rail

3570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Logic Family	AC
Logic Function	Bus Transceiver
Data Flow Direction	Bi-Directional
Number of Elements per pcs	1
Number of Channels per Chip	8
Number of Selection Inputs per Element	0
Number of Output Enables per Element	1 Low
Number of Input Enables per Element	0
Number of Direction Control Inputs	1 Low/High
Bus Hold	No
Polarity	Non-Inverting
Absolute Propagation Delay Time (ns)	13.5
Maximum Propagation Delay Time @ Maximum CL (ns)	8.5@3.3V
Propagation Delay Test Condition (pF)	50
Process Technology	CMOS
Input Level	CMOS
Output Level	CMOS
Output Type	3-State
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-24
Maximum Quiescent Current (uA)	8
Operating Supply Voltage-Min (V)	2
Operating Supply Voltage-Max (V)	6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Rail
Standard Package Method	SOP
Original Package	SOIC W
Pin Count	20
Terminal Form	Surface Mount
Package Height	2.4(Max)
Package Length	12.95(Max)
Package Width	7.6(Max)
PCB changed	20
