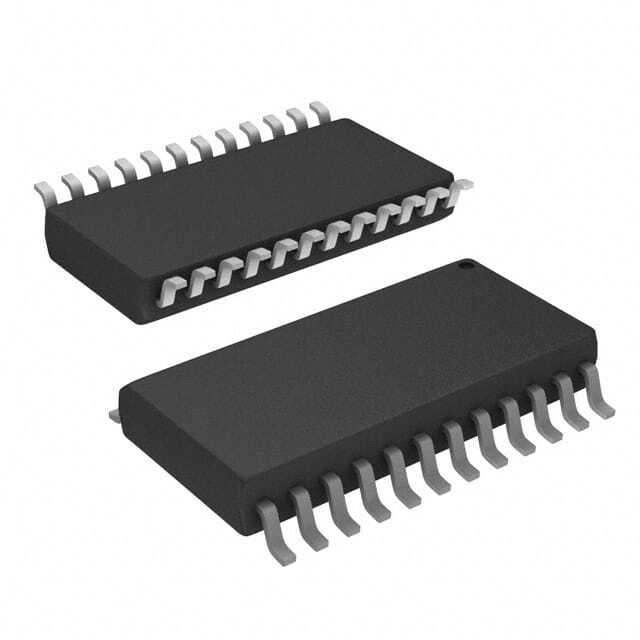

MC33035DW

SKU: 112396

Manufacturer: onsemi

H-Bridge Motor Controller 24-Pin SOIC W Rail

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Motor Controller
Motor Type	Brushless DC Motor
Output Configuration	H-Bridge
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage (V)	10 to 30
Operating Supply Voltage-Max (V)	30
Maximum Operating Current (mA)	20
Maximum Power Dissipation (mW)	650
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Rail
Original Package	SOIC W
Pin Count	24
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.36(Max)
Package Length	15.54(Max)
Package Width	7.6(Max)
PCB changed	24
