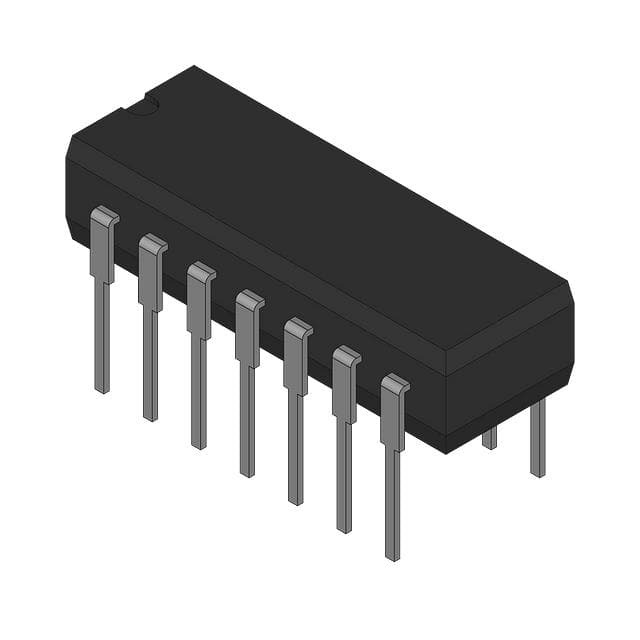

MC1488P

SKU: 105252

Manufacturer: onsemi

Quad Transmitter RS-232 Automotive 14-Pin PDIP Rail

3910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Function	Line Transmitter
Transmitter Communication Type	RS-232
Interface Standards	EIA-232-D
Data Transmission Topology	Point-to-Point
Number of Transmitters	4
Transmitter Signal Type	Single-Ended
Number of Drivers per Line	1
Driving Mode	3-State
Operating Temperature-Min	0
Operating Temperature-Max	75
Power Supply Type	Dual
Minimum Dual Supply Voltage (V)	±8.91
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±9.09
Maximum Supply Current (mA)	34
Supplier Temperature Grade	Automotive
Packing Method	Rail
Pin Count	14
Original Package	PDIP
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	4.95(Max)
Package Length	19.69(Max)
Package Width	7.11(Max)
PCB changed	14
