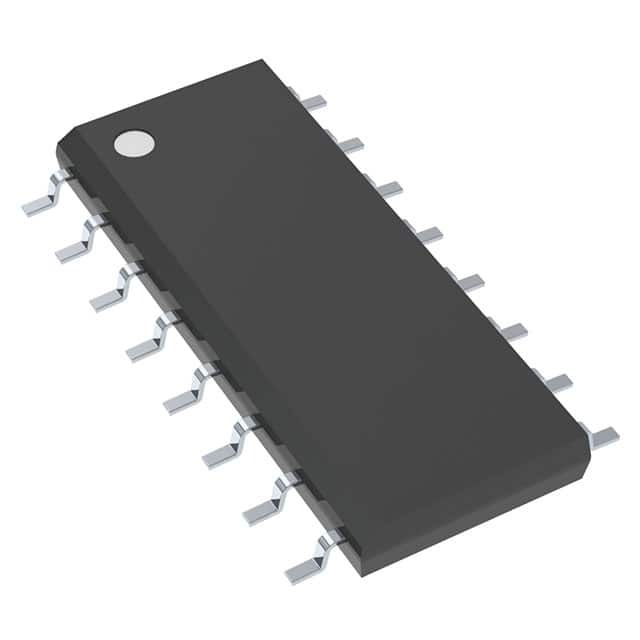

MC14538BDR2

SKU: 27507

Manufacturer: onsemi

Monostable Multivibrator Dual-Element -55°C 125°C Automotive 16-Pin SOIC T/R

450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Logic Family	4000
Logic Function	Monostable Multivibrator
Number of Elements per pcs	2
Maximum Propagation Delay Time @ Maximum CL (ns)	600@5V
Absolute Propagation Delay Time (ns)	600
Process Technology	CMOS
Maximum High Level Output Current (mA)	-4.2(Min)
Maximum Low Level Output Current (mA)	4.2(Min)
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	15
Operating Supply Voltage-Max (V)	18
Maximum Quiescent Current (mA)	0.7
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Standard Package Method	SOP
Original Package	SOIC
Pin Count	16
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	10(Max)
Package Width	4(Max)
PCB changed	16
