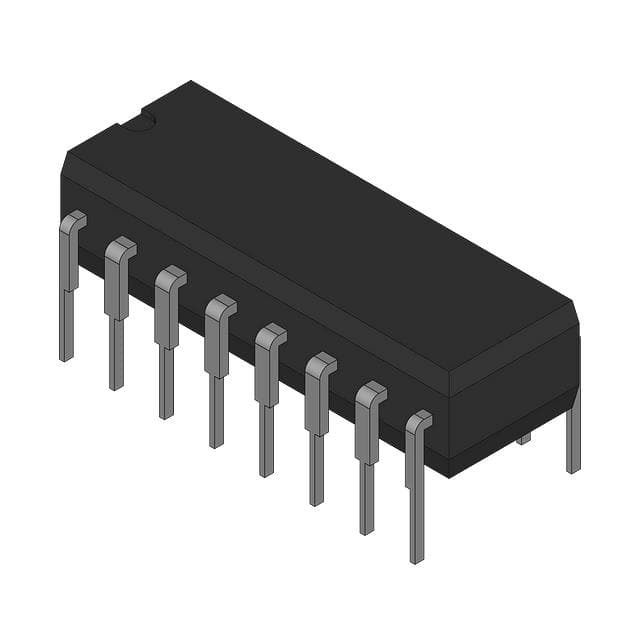

MC14536BCP

SKU: 20384

Manufacturer: onsemi

Programmable Timer Single -55°C 125°C Automotive 16-Pin PDIP Tube

690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Type	Programmable
Number of Internal Timers	1
Absolute Propagation Delay Time (ns)	3600
Maximum Propagation Delay Time @ Maximum CL (ns)	3600@5V
Output Logic Level	TTL
Maximum High Level Output Current (mA)	-4.2(Min)
Maximum Low Level Output Current (mA)	4.2(Min)
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	18
Maximum Quiescent Current (mA)	0.02
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Original Package	PDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	4.95(Max)
Package Length	19.69(Max)
Package Width	7.11(Max)
