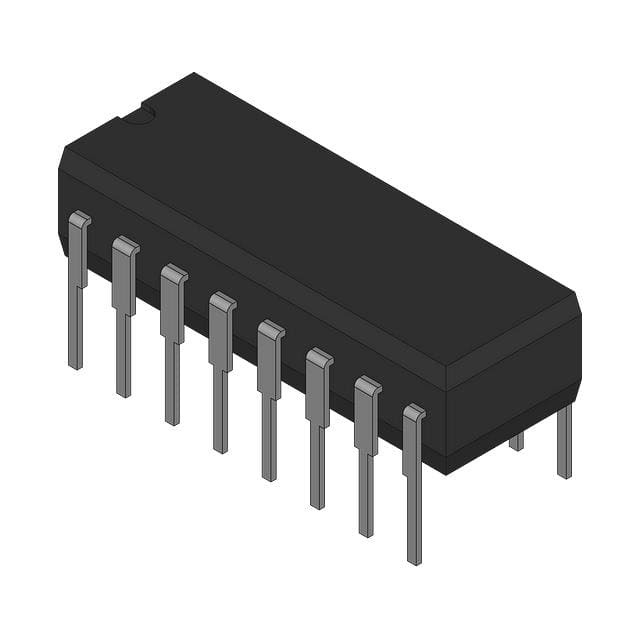

MC14532BCP

SKU: 70024

Manufacturer: onsemi

Encoder 8 to 3 Priority CMOS Automotive 16-Pin PDIP Rail

560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Type	Priority
Logic Family	4000
Number of Element Inputs	8
Number of Input Enables per Element	1
Number of Element Outputs	3
Number of Output Enables per Element	0
Number of Encoded Keys	0
Clock Controlling Signal	No
Maximum Propagation Delay Time @ Maximum CL (ns)	600@5V
Absolute Propagation Delay Time (ns)	600
Process Technology	CMOS
Output Drive Capability	-4.2mA(Min)/4.2mA(Min)
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	12
Operating Supply Voltage-Max (V)	18
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Rail
Original Package	PDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	4.95(Max)
Package Length	19.69(Max)
Package Width	7.11(Max)
PCB changed	16
