MC14069UBD

SKU: 119475

Manufacturer: onsemi

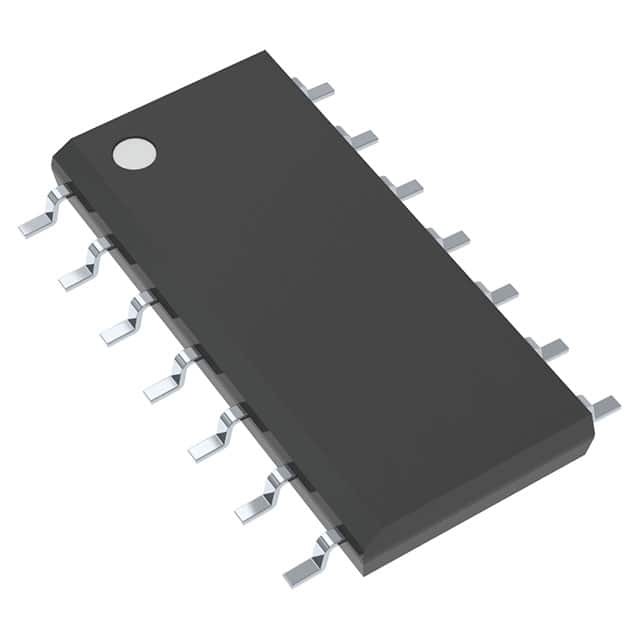

Inverter 6-Element CMOS Automotive 14-Pin SOIC N Rail

5150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Logic Family	4000
Logic Function	Inverter
Number of Elements per pcs	6
Maximum Propagation Delay Time @ Maximum CL (ns)	125@5V
Absolute Propagation Delay Time (ns)	125
Process Technology	CMOS
Maximum Low Level Output Current (mA)	4.2(Min)
Maximum High Level Output Current (mA)	-4.2(Min)
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	18
Typical Quiescent Current (uA)	0.0015
Maximum Quiescent Current (uA)	1
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Rail
Pin Count	14
Original Package	SOIC N
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.75(Max)
Package Width	4(Max)
PCB changed	14
