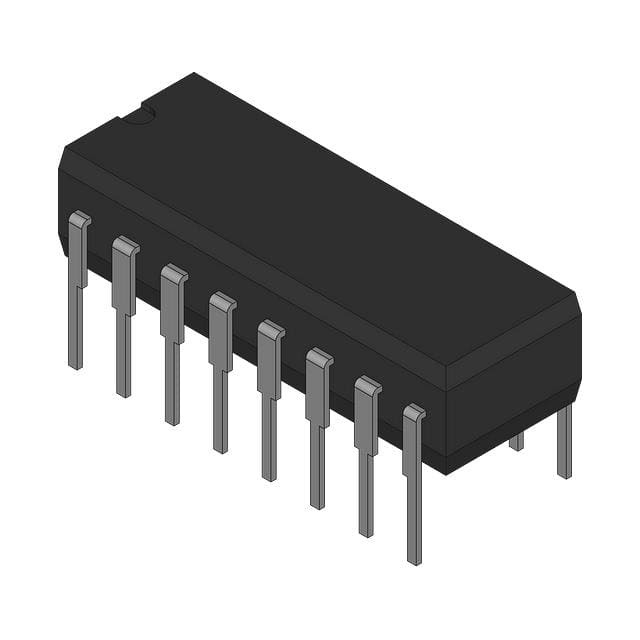

MC14052BCP

SKU: 41684

Manufacturer: onsemi

Analog Switch/Analog Multiplexer Dual 4:1 Automotive 16-Pin PDIP Tube

760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Type	Analog Multiplexer
Switch Architecture	DP4T
Number of Channels per Chip	2
Number of Inputs per Chip	8
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Propagation Delay Bus to Bus (ns)	25@15V
Maximum Turn-On Time (ns)	600@5V
Maximum Turn-Off Time (ns)	600@5V
Maximum Frequency (25°C) @ Vcc (MHz)	17(Typ)@10V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	18
Maximum Low Level Output Current (mA)	25
Maximum High Level Output Current (mA)	25
Maximum On Resistance (Ohm)	1050@5V
Maximum On Resistance Range (Ohm)	>=1000
Propagation Delay Test Condition (pF)	50
Power Supply Type	Single
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Original Package	PDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	4.95(Max)
Package Length	19.69(Max)
Package Width	7.11(Max)
PCB changed	16
