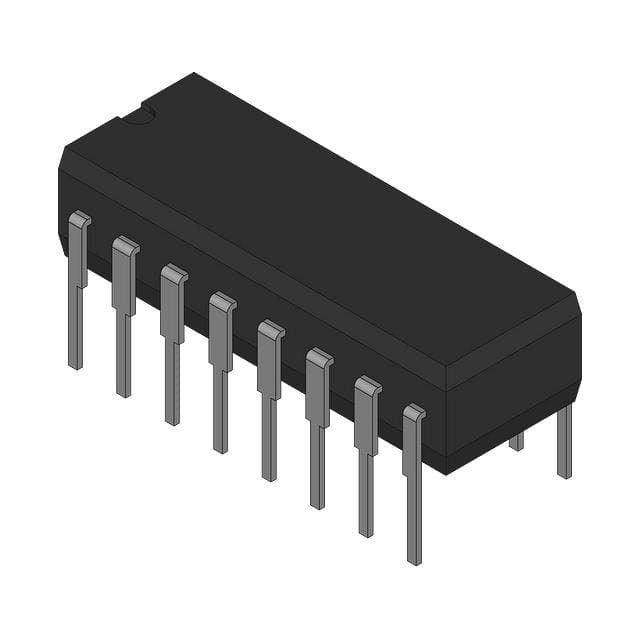

MC14044BCP

SKU: 76932

Manufacturer: onsemi

Latch Transparent 3-ST 4-CH SR-Type Automotive 16-Pin PDIP Tube

510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Type	SR-Type
Logic Family	4000
Latch Mode	Transparent
Number of Channels per Chip	4
Number of Elements per pcs	1
Number of Inputs per Chip	8
Number of Input Enables per Element	0
Number of Selection Inputs per Element	0
Number of Outputs per Chip	4
Number of Output Enables per Element	1
Bus Hold	No
Set/Reset	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	175@10V
Absolute Propagation Delay Time (ns)	350
Process Technology	CMOS
Output Type	3-State
Maximum Low Level Output Current (mA)	4.2(Min)
Maximum High Level Output Current (mA)	-4.2(Min)
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	18
Typical Quiescent Current (uA)	0.006
Maximum Quiescent Current (uA)	4
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tube
Original Package	PDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	4.95(Max)
Package Length	19.69(Max)
Package Width	7.11(Max)
PCB changed	16
