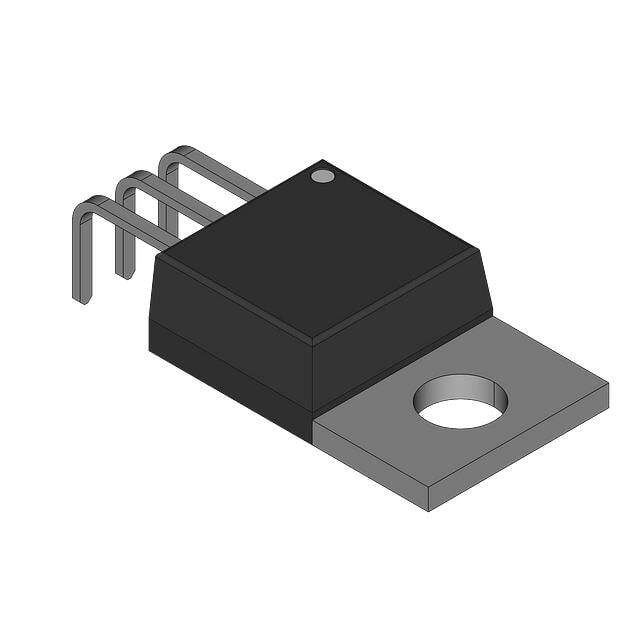

MBR20200CTG

SKU: 105239

Manufacturer: onsemi

Rectifier Diode Schottky 200V 20A 3-Pin(3+Tab) TO-220 Tube

28960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Schottky Diode
Maximum DC Reverse Voltage (V)	200
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	20
Peak Non-Repetitive Surge Current (A)	150
Peak Forward Voltage (V)	1
Peak Reverse Current (uA)	1000
Maximum Junction Ambient Thermal Resistance	60°C/W
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-220
Original Package	TO-220
Terminal Form	Through Hole
Package Height	9.28(Max)
Package Length	10.53(Max)
Package Width	4.83(Max)
PCB changed	3
Tab	Tab
