MAC8NG

SKU: 48606

Manufacturer: onsemi

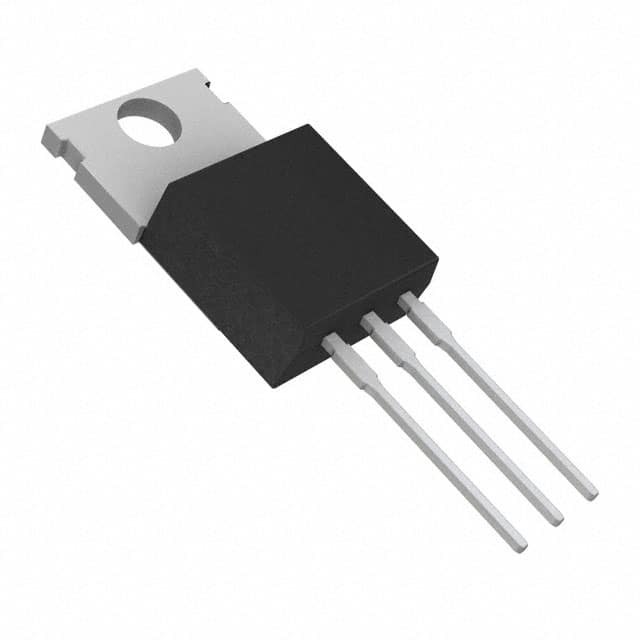

TRIAC Diode 800V 8A(RMS) 80A 3-Pin(3+Tab) TO-220AB Tube

7150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	250(Min)
Maximum Gate Trigger Voltage (V)	1.5
Maximum Gate Trigger Current (mA)	35
Surge Current Rating (A)	80
Maximum Holding Current (mA)	40
Repetitive Peak Reverse Voltage (V)	800
Peak On-State Voltage (V)	1.6@11A
Repetitive Peak Forward Blocking Voltage (V)	800
RMS On-State Current (A)	8
Repetitive Peak Off-State Current (mA)	0.01
AC Switch	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	TO-220AB
Pin Count	3
Terminal Form	Through Hole
Package Height	9.28(Max)
Package Length	10.67(Max)
Package Width	4.78(Max)
PCB changed	3
