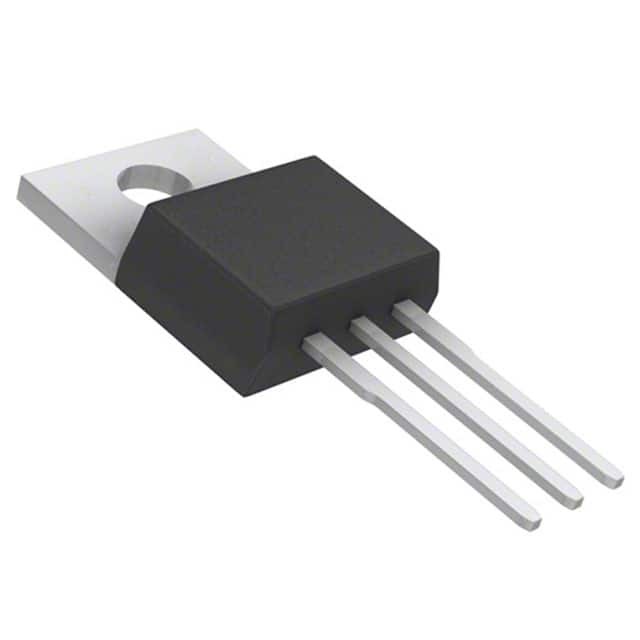

LM7905CT

SKU: 12364

Manufacturer: onsemi

Standard Regulator Neg -5V 2.2A 3-Pin(3+Tab) TO-220 Tube

2860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Negative
Accuracy (%)	±4
Output Type	Fixed
Output Voltage (V)	-5
Maximum Output Current (A)	2.2(Typ)
Maximum Input Voltage (V)	-35
Line Regulation	100mV
Load Regulation	100mV
Maximum Quiescent Current (mA)	6
Junction to Ambient	65°C/W
Junction to Case	5°C/W
Special Features	Short Circuit Protection
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tube
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.4(Max)
Package Length	10.67(Max)
Package Width	4.7(Max)
PCB changed	3
Tab	Tab
