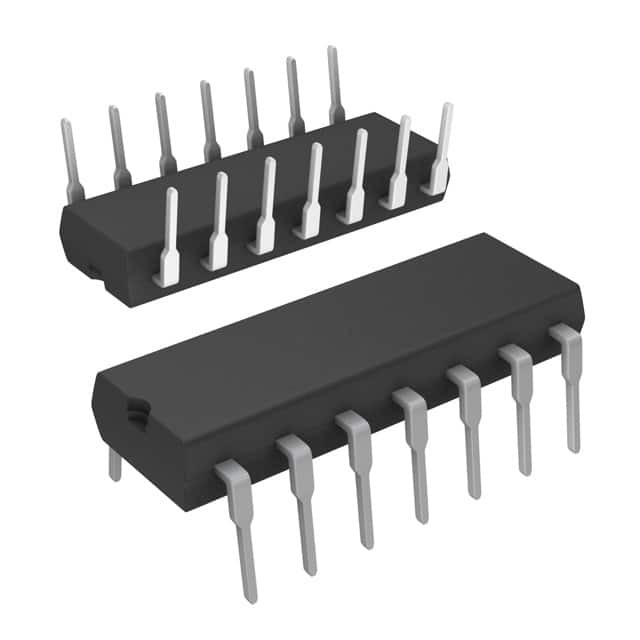

LM324N

SKU: 26395

Manufacturer: onsemi

Four independent high gain op-amps with a large voltage operating range of 32V and suitable for single rail operation.

61100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	High Gain Amplifier
Manufacturer Type	High Gain Amplifier
Number of Channels per Chip	4
Process Technology	Bipolar
Maximum Input Offset Voltage (mV)	7@30V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	32
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±16
Maximum Input Offset Current (uA)	0.05@5V
Maximum Input Bias Current (uA)	0.25@5V
Maximum Quiescent Current (mA)	1.2@5V
Typical Output Current (mA)	40@15V
Power Supply Type	Single
Maximum Power Dissipation (mW)	1310
Typical Voltage Gain (dB)	100
Minimum PSRR (dB)	65
Minimum CMRR (dB)	65
Minimum CMRR Range (dB)	65 to 70
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Original Package	PDIP
Pin Count	14
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	4.95(Max)
Package Length	19.69(Max)
Package Width	7.11(Max)
PCB changed	14
