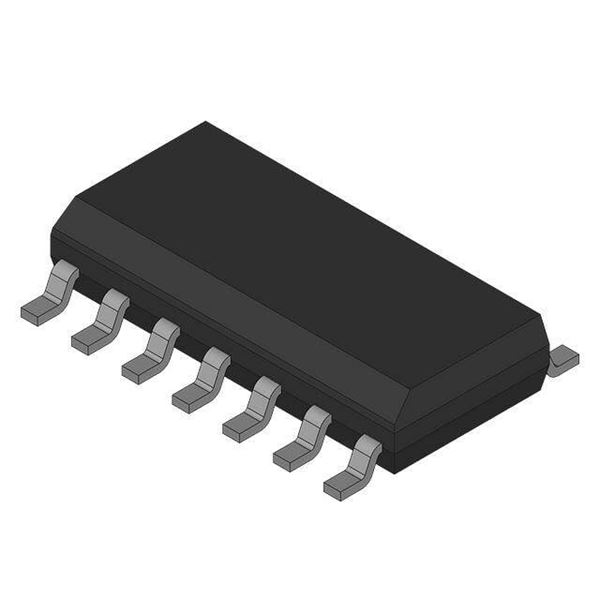

LM324DG

SKU: 26393

Manufacturer: onsemi

Op Amp Quad GP ±16V/32V 14-Pin SOIC N Tube

860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	General Purpose Amplifier
Manufacturer Type	General Purpose Amplifier
Number of Channels per Chip	4
Maximum Input Offset Voltage (mV)	7@30V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	32
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±16
Typical Low Level Output Voltage (V)	0.005
Typical High Level Output Voltage (V)	28
Maximum Input Offset Current (uA)	0.05@5V
Typical Input Bias Current (uA)	0.09@5V
Maximum Input Bias Current (uA)	0.25@5V
Maximum Quiescent Current (mA)	1.2@5V@0C to 70C
Typical Output Current (mA)	40@15V
Power Supply Type	Single
Typical Voltage Gain (dB)	100
Minimum PSRR (dB)	65
Minimum CMRR (dB)	65
Minimum CMRR Range (dB)	65 to 70
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	14
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.75(Max)
Package Width	4(Max)
PCB changed	14
