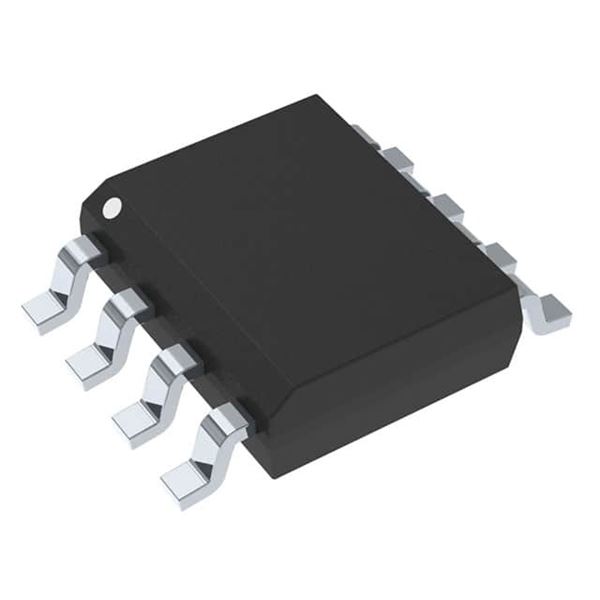

LM317LDR2 onsemi

LM317LDR2

SKU: 132640

Manufacturer: onsemi

Standard Regulator Pos 1.2V to 37V 0.1A 8-Pin SOIC N T/R

Download sample

Request Free Samples

5280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Positive
Process Technology	TTL
Output Type	Adjustable
Output Voltage (V)	1.2 to 37
Maximum Output Current (A)	0.1(Min)
Minimum Input Voltage (V)	2.8
Maximum Input Voltage (V)	40
Reference Voltage (V)	1.3
Line Regulation	0.04%/V
Load Regulation	0.5%
Junction to Ambient	180°C/W
Junction to Case	45°C/W
Special Features	Current Limit
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOIC N
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
