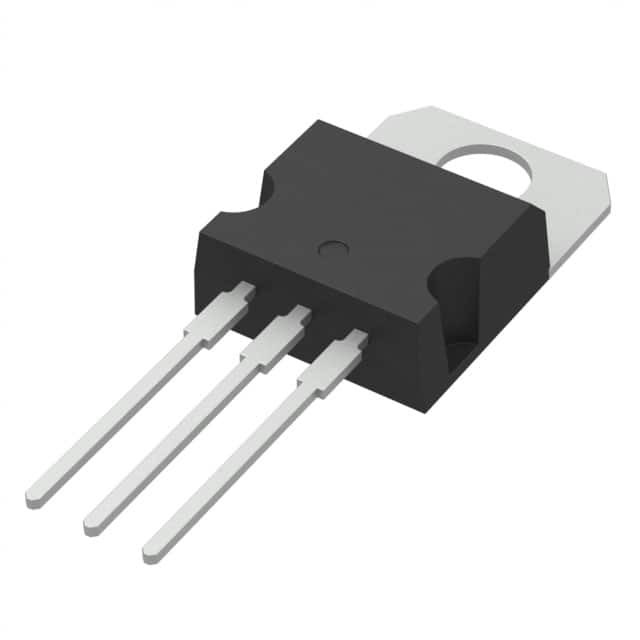

LM317BT

SKU: 132636

Manufacturer: onsemi

LDO Regulator Pos 1.2V to 37V 0.4A 3-Pin(3+Tab) TO-220 Tube

4050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	1.2 to 37
Maximum Output Current (A)	0.4(Typ)
Minimum Input Voltage (V)	2.8
Maximum Input Voltage (V)	40
Reference Voltage (V)	1.3
Line Regulation	0.04%/V
Load Regulation	0.5%Vo
Junction to Ambient	65°C/W
Junction to Case	5°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.28(Max)
Package Length	10.28(Max)
Package Width	4.82(Max)
PCB changed	3
Tab	Tab
