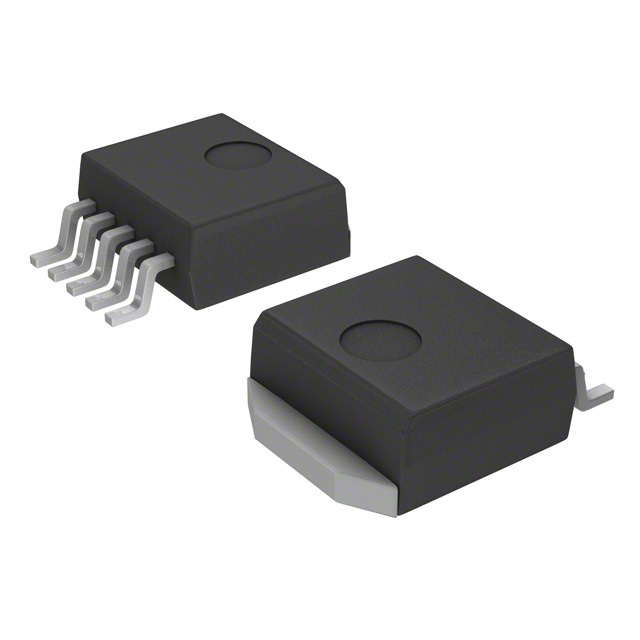

LM2576D2T-ADJR4G

SKU: 111252

Manufacturer: onsemi

Conv DC-DC 7V to 40V Step Down Single-Out 1.23V to 37V 3A 6-Pin(5+Tab) D2PAK T/R

37120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Step Down
Output Type	Adjustable
Switching Frequency (kHz)	52(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1.23 to 37
Maximum Output Current (A)	3
Minimum Input Voltage (V)	7
Maximum Input Voltage (V)	40
Operating Supply Voltage (V)	7 to 40
Typical Quiescent Current (uA)	5000
Efficiency (%)	77(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	TO-263
Original Package	D2PAK
Terminal Form	Surface Mount
Package Height	4.57(Max)
Package Length	10.24(Max)
Package Width	9.35(Max)
PCB changed	5
Tab	Tab
