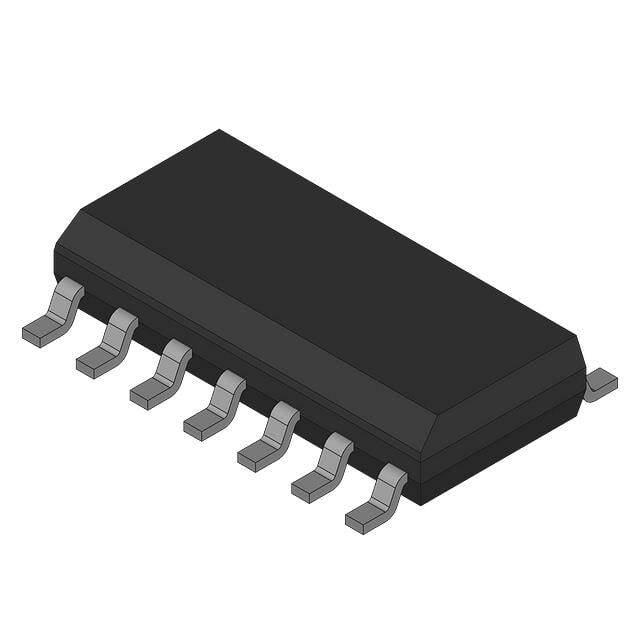

LM224DR2

SKU: 82897

Manufacturer: onsemi

Op Amp Quad GP ±16V/32V 14-Pin SOIC N T/R

102860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	General Purpose Amplifier
Manufacturer Type	General Purpose Amplifier
Number of Channels per Chip	4
Process Technology	Bipolar
Maximum Input Offset Voltage (mV)	5@30V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	28
Maximum Single Supply Voltage (V)	32
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±16
Maximum Input Offset Current (uA)	0.03@5V
Maximum Input Bias Current (uA)	0.15@5V
Maximum Supply Current (mA)	1.2@5V@-25C to 85C
Typical Output Current (mA)	40@15V
Power Supply Type	Dual
Typical Voltage Gain (dB)	100
Minimum PSRR (dB)	65
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Shut Down Support	No
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	14
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.75(Max)
Package Width	4(Max)
PCB changed	14
