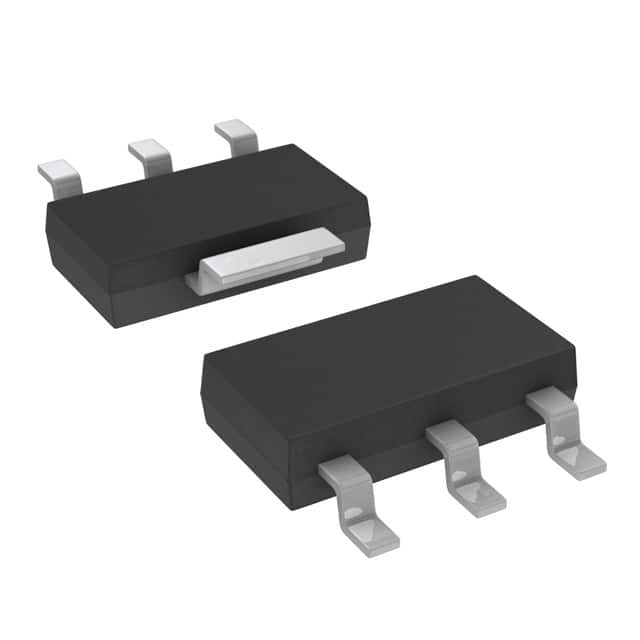

LM1117MPX-33NOPB

SKU: 54821

Manufacturer: onsemi

LDO Regulator Pos 3.3V 0.8A 4-Pin(3+Tab) SOT-223 T/R

1840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	0.8
Minimum Input Voltage (V)	2.4
Maximum Input Voltage (V)	15
Maximum Dropout Voltage @ Current (V)	1.2@800mA
Line Regulation	0.8mV(Typ)
Load Regulation	4.3mV(Typ)
Maximum Quiescent Current (mA)	10
Junction to Ambient	160°C/W
Junction to Case	15°C/W
Special Features	Thermal Protection
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOT-223
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.69(Max)
Package Length	6.5
Package Width	3.5
PCB changed	3
Tab	Tab
