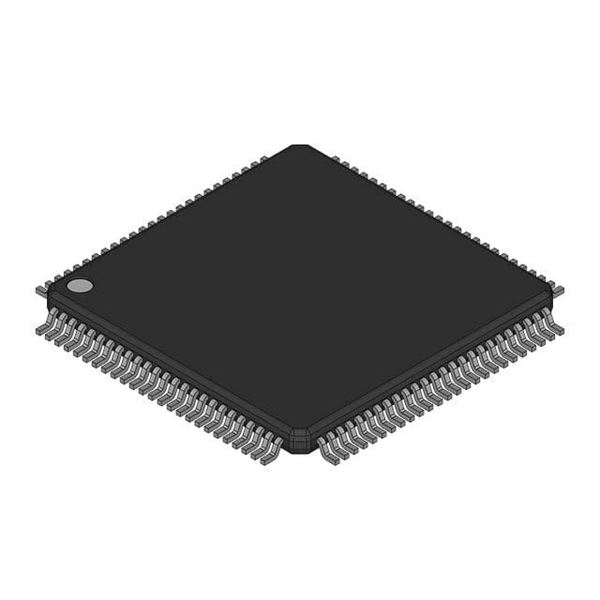

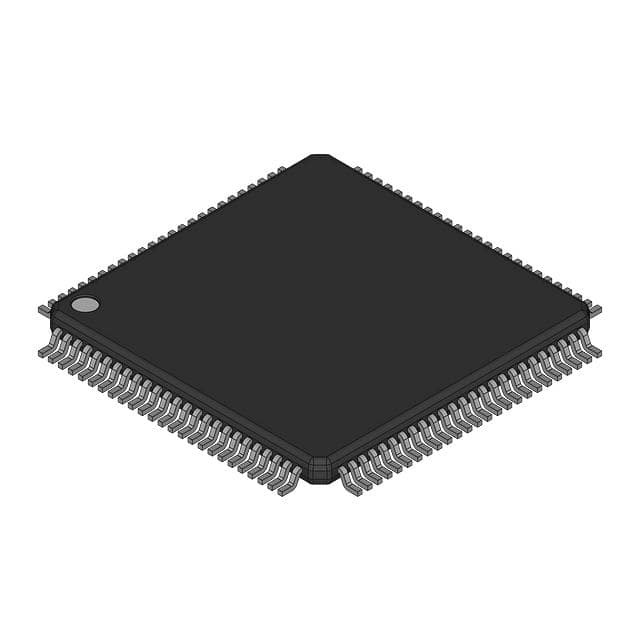

LC87F7NP6AVUEJ-2H

SKU: 44713

Manufacturer: onsemi

MCU 8-bit CISC 256KB Flash 3.3V 100-Pin PQFP Tray

3290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.31.00.01
Automotive	No
PPAP	No
Instruction Set Architecture	CISC
Maximum CPU Frequency (MHz)	18
Maximum Clock Rate (MHz)	18
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	256KB
RAM Size	8KB
Programmability	Yes
Interface Type	SIO/UART
Number of I/Os	29
No. of Timers	8
Number of ADCs	Single
ADC Channels	15
ADC Resolution (bit)	12
USART	0
UART	2
USB	0
SPI	0
I2C	0
I2S	0
CAN	0
Ethernet	0
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	PQFP
Pin Count	100
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	2.7
Package Length	20
Package Width	14
PCB changed	100
