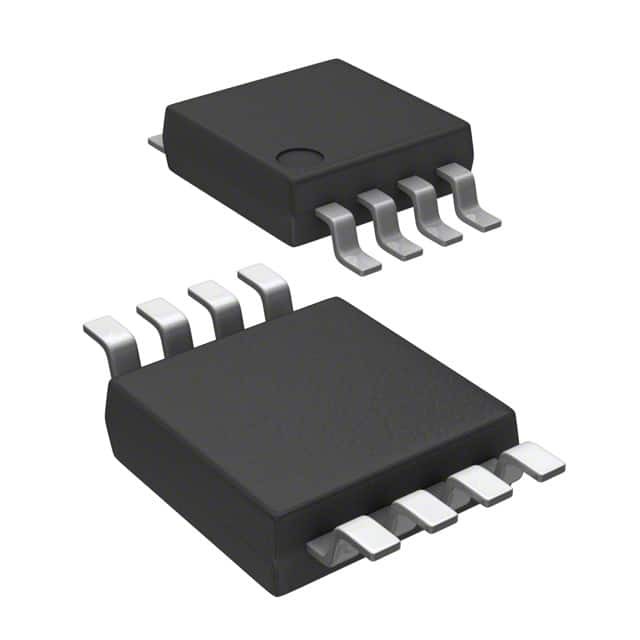

LB1938FA-AH

SKU: 153763

Manufacturer: onsemi

Forward/Reverse Motor Driver 8-Pin Micro T/R

1790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Motor Driver
Motor Type	DC Motor
Operating Supply Voltage-Min (V)	2.2
Operating Supply Voltage (V)	2.2 to 10
Operating Supply Voltage-Max (V)	10
Maximum Operating Current (mA)	19
Maximum Power Dissipation (mW)	400
Operating Temperature-Min	-30
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	Micro
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3
Package Width	3
PCB changed	8
