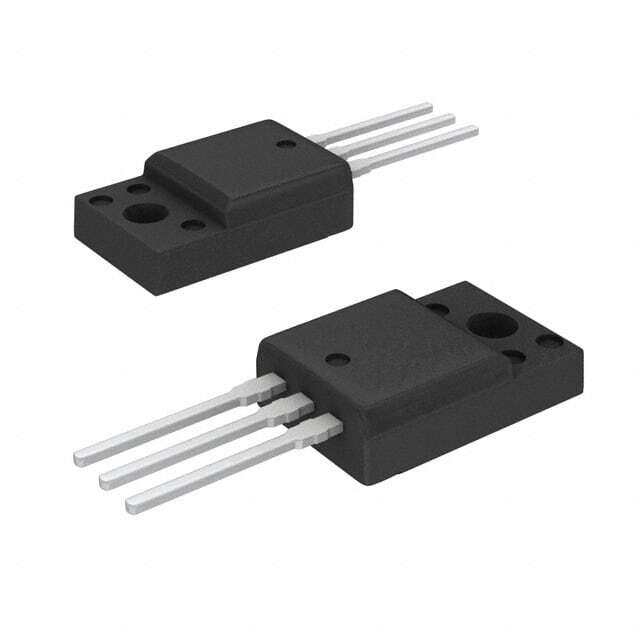

KSB1366Y

SKU: 139558

Manufacturer: onsemi

Trans GP BJT PNP 60V 3A 2000mW 3-Pin(3+Tab) TO-220F Bulk

3410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	60
Collector-Emitter Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	7
Maximum Collector-Emitter Saturation Voltage (V)	1@0.2A@2A
Maximum DC Collector Current (A)	3
Minimum DC Current Gain	100@500mA@5V
Maximum Power Dissipation (mW)	2000
Maximum Transition Frequency (MHz)	9(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Bulk
Original Package	TO-220F
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	15.87
Package Length	10.16
Package Width	4.7
PCB changed	3
Tab	Tab
