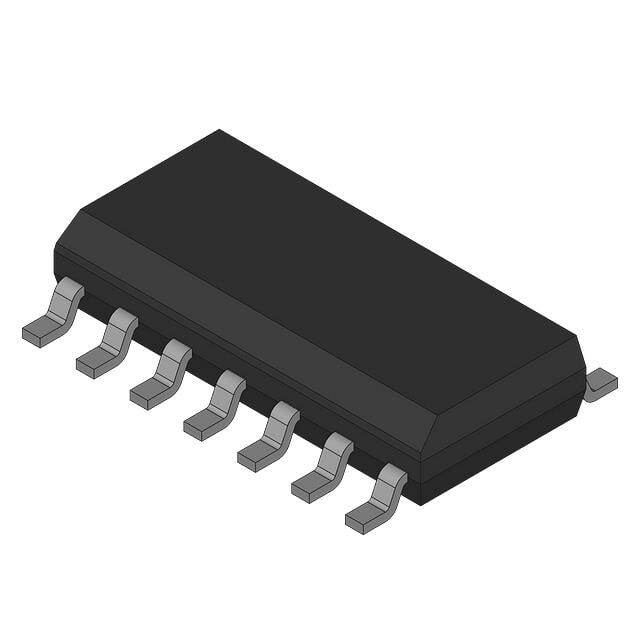

KA339D

SKU: 89838

Manufacturer: onsemi

Comparator Quad ±18V/36V 14-Pin SOIC N Rail

23280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Manufacturer Type	Voltage Comparator
Number of Channels per Chip	4
Rail to Rail	No
Process Technology	Bipolar
Typical Response Time (us)	1.3
Typical Response Time Range (us)	0.5 to 5
Output Type	Open Collector
Operating Supply Voltage-Max (V)	±18
Maximum Input Offset Voltage (mV)	5@5V
Minimum Single Supply Voltage (V)	2
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±1
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±18
Typical Voltage Gain (dB)	106.02
Typical Voltage Gain Range (dB)	90 to 110
Maximum Input Bias Current (uA)	0.25@5V
Typical Output Current (mA)	18@5V
Maximum Quiescent Current (mA)	2@5V
Maximum Power Dissipation (mW)	570
Power Supply Type	Single
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Rail
Standard Package Method	SOP
Original Package	SOIC N
Pin Count	14
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.75(Max)
Package Width	4(Max)
PCB changed	14
