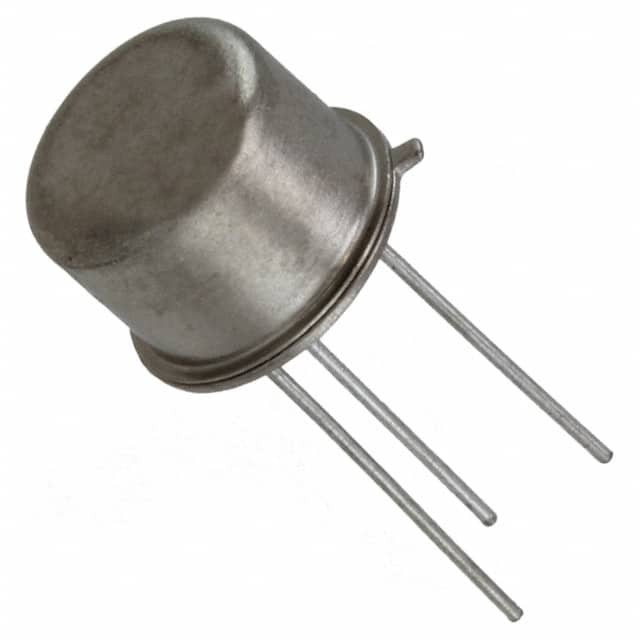

JANTX2N2219AL

SKU: 118171

Manufacturer: onsemi

Trans GP BJT NPN 50V 0.8A 800mW 3-Pin TO-39 Tube

1300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.21.00.95
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	75
Collector-Emitter Voltage-Max (V)	50
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	1.2@15mA@150mA
Maximum Collector-Emitter Saturation Voltage (V)	0.3@15mA@150mA
Maximum DC Collector Current (A)	0.8
Maximum Collector Cut-Off Current (nA)	10000
Minimum DC Current Gain	50@0.1mA@10V
Maximum Power Dissipation (mW)	800
Operating Temperature-Min	-65
Operating Temperature-Max	200
Packing Method	Tube
Supplier Temperature Grade	Military
Original Package	TO-39
Pin Count	3
Standard Package Method	TO-205-AF
Diameter	9.4(Max)
Terminal Form	Through Hole
Package Height	6.6(Max)
PCB changed	3
