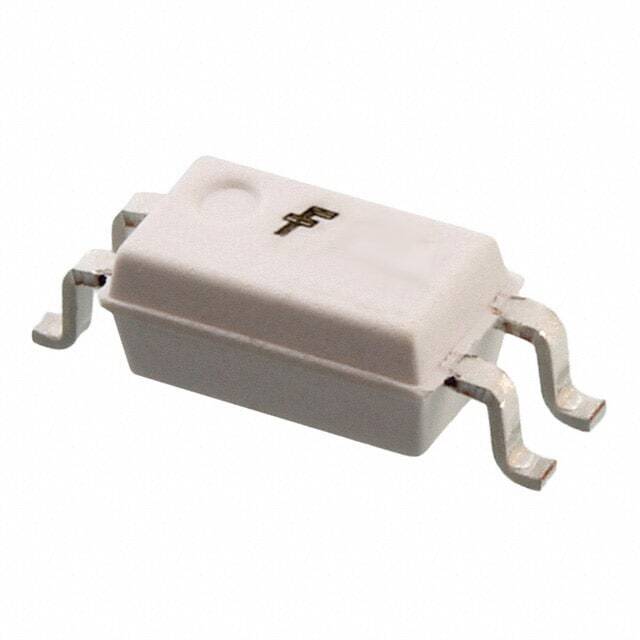

HMHAA280R2

SKU: 11831

Manufacturer: onsemi

Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin Mini-Flat T/R

120860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	AC
Output Device	Transistor
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	3750
Operating Temperature-Min	-55
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.4
Collector-Emitter Voltage-Max (V)	80
Maximum Current Transfer Ratio (%)	600
Standard	BSI
Maximum Collector Current (mA)	50
Maximum Collector-Emitter Saturation Voltage (mV)	400
Maximum Power Dissipation (mW)	150
Maximum Reverse Voltage (V)	6
Maximum Forward Current (mA)	50
Packing Method	Tape and Reel
Minimum Current Transfer Ratio (%)	50
Current Transfer Ratio Test Current (mA)	5
Typical Rise Time (us)	3
Typical Fall Time (us)	3
Standard Package Method	SOIC
Pin Count	4
Original Package	Mini-Flat
Terminal Form	Surface Mount
Package Height	2.11(Max)
Package Length	2.69(Max)
Package Width	4.4
PCB changed	4
