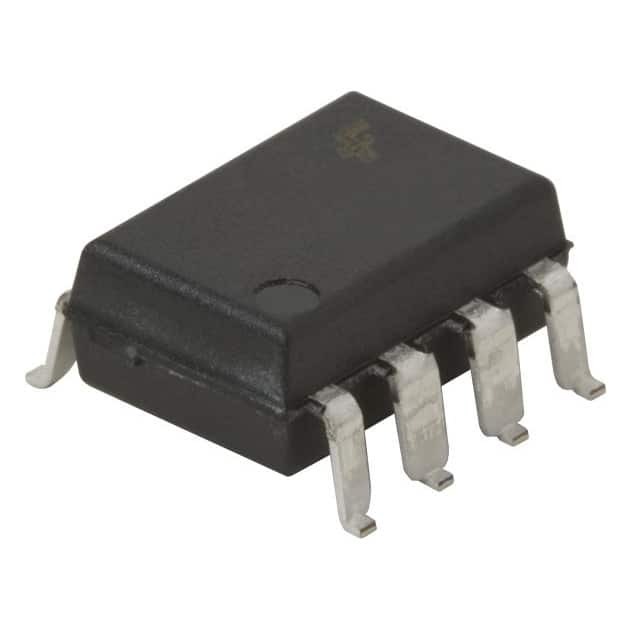

HCPL2531S

SKU: 82549

Manufacturer: onsemi

Optocoupler DC-IN 2-CH Transistor With Base DC-OUT 8-Pin PDIP SMD Black Bag

1160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Transistor With Base
Number of Channels per Chip	2
Minimum Isolation Voltage (Vrms)	2500
Operating Temperature-Min	-55
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.7
Maximum Current Transfer Ratio (%)	50
Standard	UL
Maximum Collector Current (mA)	8/ch
Maximum Power Dissipation (mW)	100/ch
Maximum Reverse Voltage (V)	5
Typical Forward Voltage (V)	1.45
Maximum Forward Current (mA)	25/ch
Packing Method	Bag
Minimum Current Transfer Ratio (%)	19
Current Transfer Ratio Test Current (mA)	16
Maximum Data Rate	1Mbps
Standard Package Method	DIP
Pin Count	8
Original Package	PDIP SMD Black
Terminal Form	Surface Mount
Package Height	3.94(Max)
Package Length	9.91(Max)
Package Width	6.86(Max)
PCB changed	8
