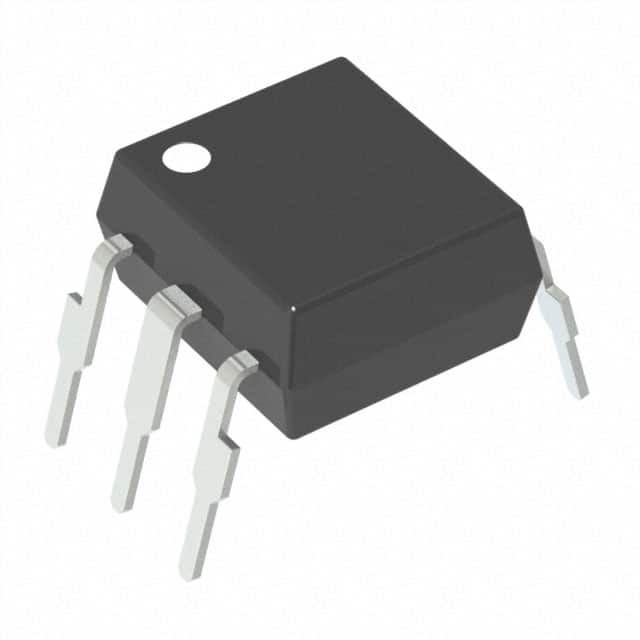

H11L1M

SKU: 18969

Manufacturer: onsemi

Optocoupler Logic-Out Open Collector DC-IN 1-CH 6-Pin PDIP W Bag

260860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Logic Gate Type	NAND Schmitt
Number of Channels per Chip	1
Polarity	Inverting
Direction Type	Uni-Directional
Minimum Isolation Voltage (Vrms)	7500
Typical Rise Time (us)	0.1
Typical Fall Time (us)	0.1
Standard	UL
Input Type	DC
Output Type	Open Collector
Maximum Forward Current (mA)	30
Maximum Continuous Output Current (mA)	50
Typical Forward Voltage (V)	1.2
Maximum Forward Voltage (V)	1.5
Maximum Reverse Voltage (V)	6
Maximum Power Dissipation (mW)	250
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Bag
Standard Package Method	DIP
Original Package	PDIP W
Pin Count	6
Terminal Form	Through Hole
Package Height	3.53(Max)
Package Length	8.89(Max)
Package Width	6.6(Max)
PCB changed	6
