GBU4J

SKU: 47335

Manufacturer: onsemi

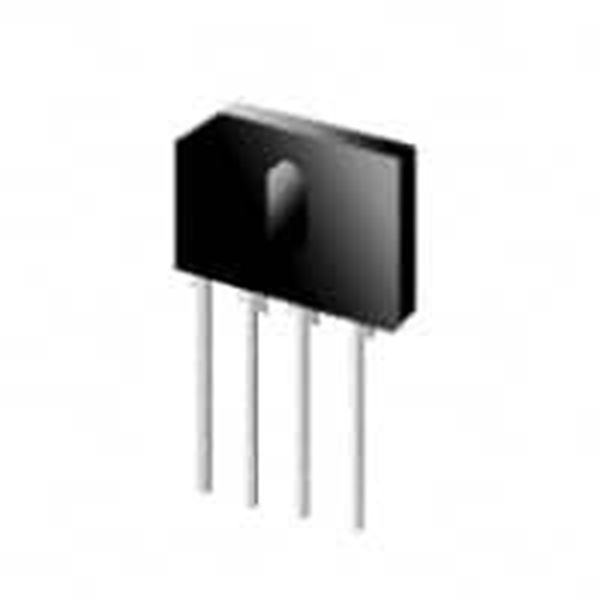

Rectifier Bridge Diode Single 600V 4A 4-Pin Case GBU Tube

1230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Bridge Type	Single Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	600
Peak Average Forward Current (A)	4@Ta=100C
Peak RMS Reverse Voltage (V)	420
Peak Non-Repetitive Forward Surge Current (A)	150
Peak Forward Voltage (V)	1
Peak Reverse Current (uA)	5
Maximum Power Dissipation (mW)	8000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	Case GBU
Pin Count	4
Standard Package Method	Case GBU
Terminal Form	Through Hole
Package Height	18.8(Max)
Package Length	22.3(Max)
Package Width	3.56(Max)
