FYP2010DN

SKU: 146269

Manufacturer: onsemi

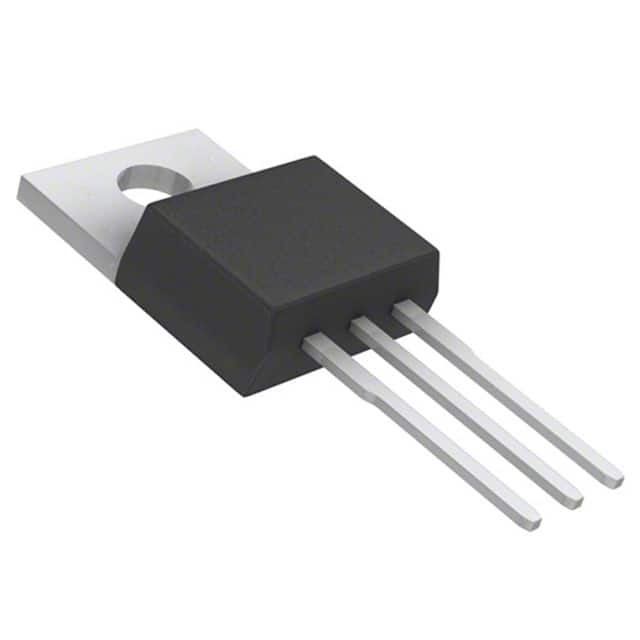

Rectifier Diode Schottky 100V 20A 3-Pin(3+Tab) TO-220

1970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Schottky Diode
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	100
Maximum Continuous Forward Current (A)	20
Peak Non-Repetitive Surge Current (A)	150
Peak Forward Voltage (V)	0.77@10A
Peak Reverse Current (uA)	1000
Operating Temperature-Min	-65
Operating Temperature-Max	150
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.4(Max)
Package Length	10.1(Max)
Package Width	4.7(Max)
PCB changed	3
Tab	Tab
