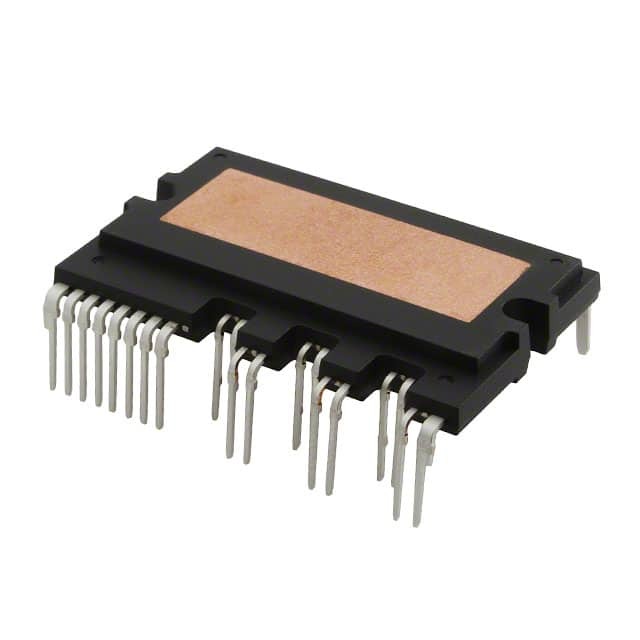

    FSBB20CH60C

    SKU: 47298
    Manufacturer: onsemi
    IPM IGBT 600V 20A 27-Pin SPM27-CC Tube
    Download sample
    Request Free Samples
    220 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    SVHC Yes
    Automotive No
    PPAP No
    Type IGBT
    Configuration Hex
    Number of Phases Three
    Protection Type Short Circuit/Under Voltage
    Collector-Emitter Voltage-Max (V) 600
    Typical Collector Emitter Saturation Voltage (V) 2(Max)
    Maximum Continuous Collector Current (A) 20
    Maximum Isolation Voltage (Vrms) 2500
    Maximum Power Dissipation (W) 62
    Operating Temperature-Min -40
    Operating Temperature-Max 125
    Packing Method Tube
    Original Package SPM27-CC
    Pin Count 27
    Standard Package Method SPM27-CC
    Terminal Form Through Hole
    Package Height 5.5
    Package Length 44
    Package Width 26.8
