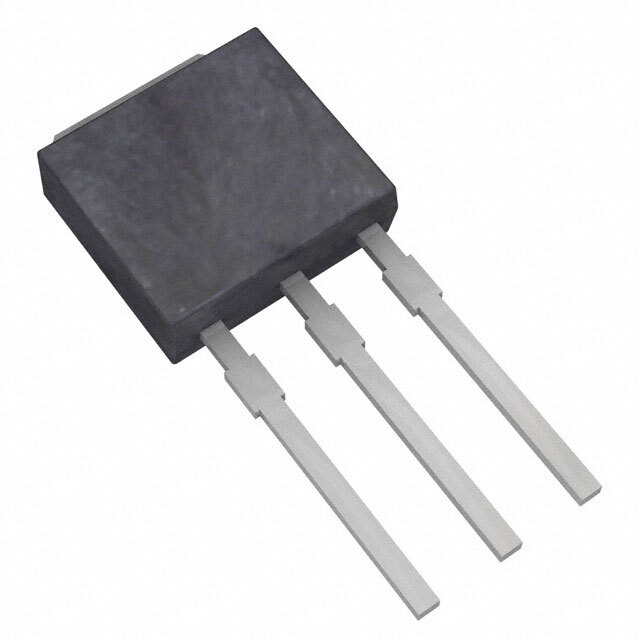

FQU5N50CTU

SKU: 89529

Manufacturer: onsemi

Trans MOSFET N-CH 500V 4A 3-Pin(3+Tab) IPAK Rail

1300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	500
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	4
Maximum Drain Source Resistance (mOhm)	1400@10V
Typical Gate Charge @ Vgs (nC)	18@10V
Typical Gate Charge @ 10V (nC)	18
Typical Input Capacitance @ Vds (pF)	480@25V
Maximum Power Dissipation (mW)	2500
Typical Fall Time (ns)	48
Typical Rise Time (ns)	46
Typical Turn-Off Delay Time (ns)	50
Typical Turn-On Delay Time (ns)	12
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Rail
Original Package	IPAK
Pin Count	3
Standard Package Method	TO-251
Terminal Form	Through Hole
Package Height	6.1
Package Length	6.6
Package Width	2.3
PCB changed	3
