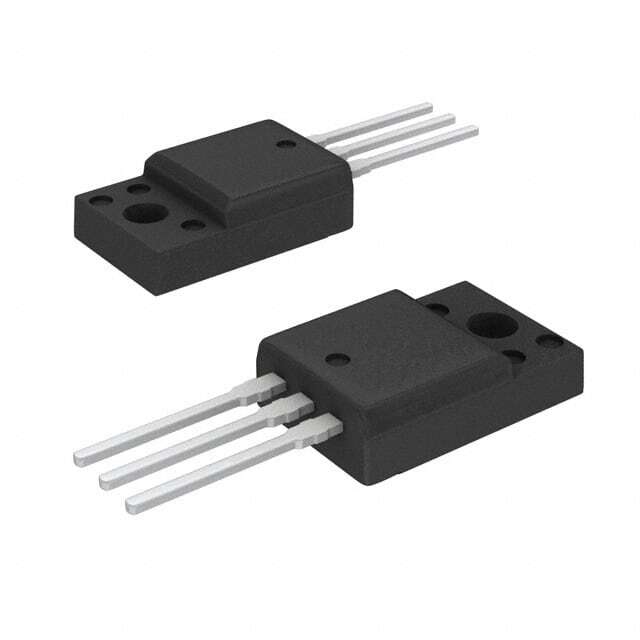

FQPF18N20V2

SKU: 153407

Manufacturer: onsemi

Trans MOSFET N-CH 200V 18A 3-Pin(3+Tab) TO-220F Rail

360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Unknown
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	200
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	18
Maximum Drain Source Resistance (mOhm)	140@10V
Typical Gate Charge @ Vgs (nC)	20@10V
Typical Gate Charge @ 10V (nC)	20
Typical Input Capacitance @ Vds (pF)	830@25V
Maximum Power Dissipation (mW)	40000
Typical Fall Time (ns)	62
Typical Rise Time (ns)	133
Typical Turn-Off Delay Time (ns)	38
Typical Turn-On Delay Time (ns)	16
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Rail
Original Package	TO-220F
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	15.87
Package Length	10.16
Package Width	4.7
PCB changed	3
Tab	Tab
