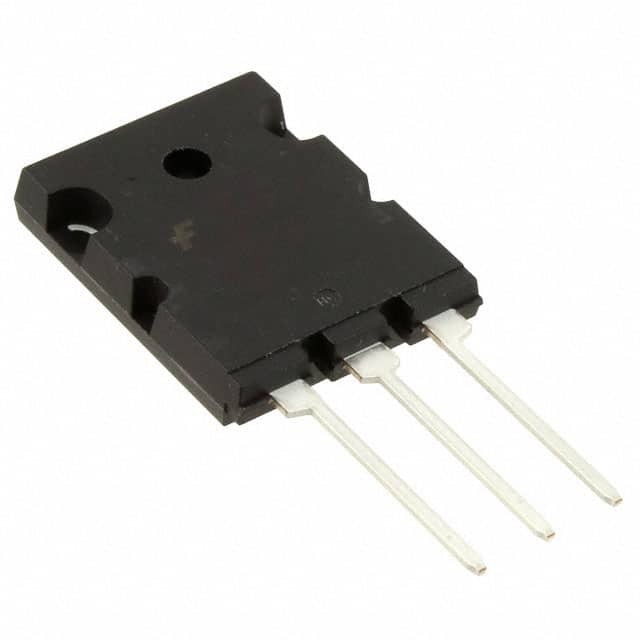

FQL40N50

SKU: 33014

Manufacturer: onsemi

Trans MOSFET N-CH 500V 40A 3-Pin(3+Tab) TO-264 Tube

4640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541290095
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	500
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	40
Maximum Drain Source Resistance (mOhm)	110@10V
Typical Gate Charge @ Vgs (nC)	155@10V
Typical Gate Charge @ 10V (nC)	155
Typical Input Capacitance @ Vds (pF)	5800@25V
Maximum Power Dissipation (mW)	460000
Typical Fall Time (ns)	250
Typical Rise Time (ns)	440
Typical Turn-Off Delay Time (ns)	350
Typical Turn-On Delay Time (ns)	140
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-264
Pin Count	3
Terminal Form	Through Hole
Package Height	26
Package Length	20
Package Width	5
PCB changed	3
