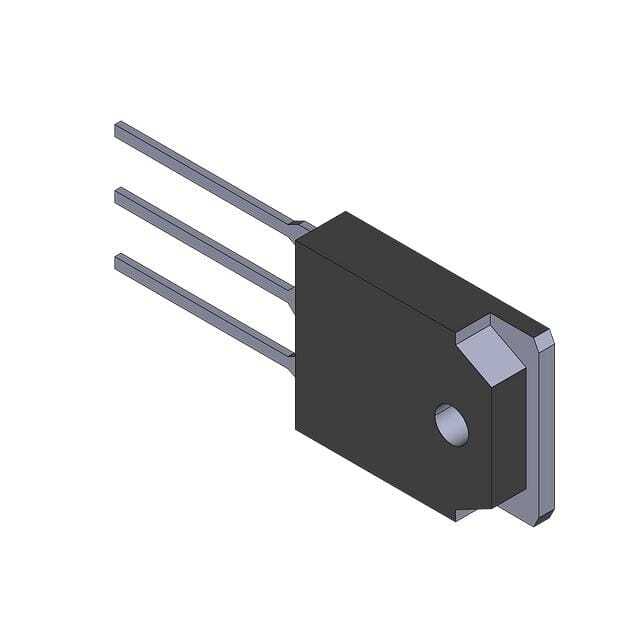

FQA28N50

SKU: 89523

Manufacturer: onsemi

Trans MOSFET N-CH 500V 28.4A 3-Pin(3+Tab) TO-3P Tube

38070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	NRND
HTS	8541290095
SVHC	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	500
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	28.4
Maximum Drain Source Resistance (mOhm)	160@10V
Typical Gate Charge @ Vgs (nC)	110@10V
Typical Gate Charge @ 10V (nC)	110
Typical Input Capacitance @ Vds (pF)	4300@25V
Maximum Power Dissipation (mW)	310000
Typical Fall Time (ns)	175
Typical Rise Time (ns)	290
Typical Turn-Off Delay Time (ns)	250
Typical Turn-On Delay Time (ns)	100
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-3P
Pin Count	3
Standard Package Method	TO-3P
Terminal Form	Through Hole
Package Height	18.9(Max)
Package Length	16.2(Max)
Package Width	5(Max)
PCB changed	3
Tab	Tab
