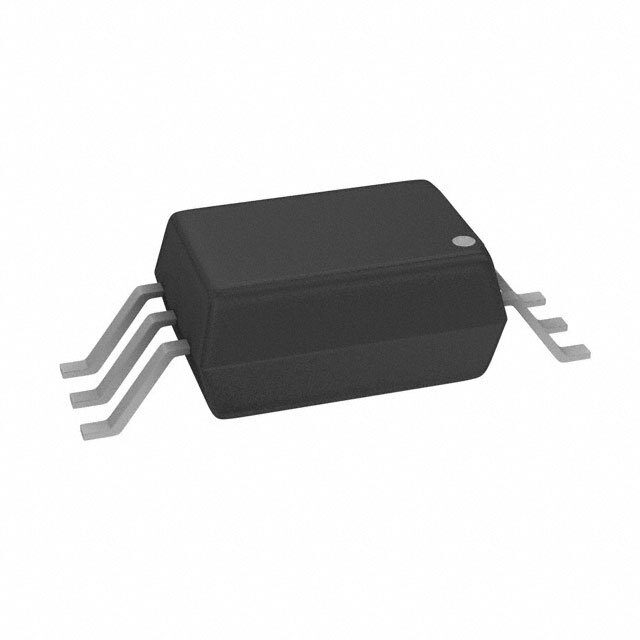

FOD8480

SKU: 136545

Manufacturer: onsemi

Optocoupler Logic-Out Totem-Pole DC-IN 1-CH 6-Pin SOIC Tube

1330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Logic Gate Type	AND
Number of Channels per Chip	1
Polarity	Non-Inverting
Direction Type	Uni-Directional
Minimum Isolation Voltage (Vrms)	5000
Typical Rise Time (us)	0.015
Typical Fall Time (us)	0.01
Standard	DIN
Input Type	DC
Output Type	Totem-Pole
Maximum Forward Current (mA)	20
Maximum Continuous Output Current (mA)	25
Typical Forward Voltage (V)	1.4
Maximum Forward Voltage (V)	1.75
Maximum Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	300
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	SOIC
Pin Count	6
Terminal Form	Surface Mount
Package Height	3.18
Package Length	4.5
Package Width	6.81
