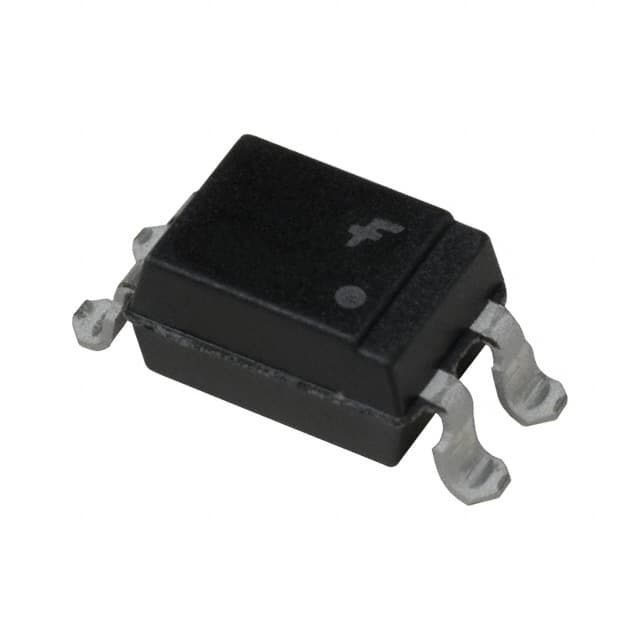

FOD819S

SKU: 44614

Manufacturer: onsemi

Optocoupler DC-OUT 4-Pin PDIP SMD Box

1350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Operating Temperature-Min	-55
Operating Temperature-Max	110
Maximum Forward Voltage (V)	1.4
Collector-Emitter Voltage-Max (V)	7
Maximum Collector Current (mA)	30
Maximum Collector-Emitter Saturation Voltage (mV)	300
Maximum Power Dissipation (mW)	70
Typical Forward Voltage (V)	1.2
Packing Method	Box
Minimum Collector Emitter Voltage (V)	80
Typical Rise Time (us)	12
Typical Fall Time (us)	20
Pin Count	4
Original Package	PDIP SMD
Terminal Form	Surface Mount
Package Height	4(Max)
Package Length	5.1(Max)
Package Width	7(Max)
