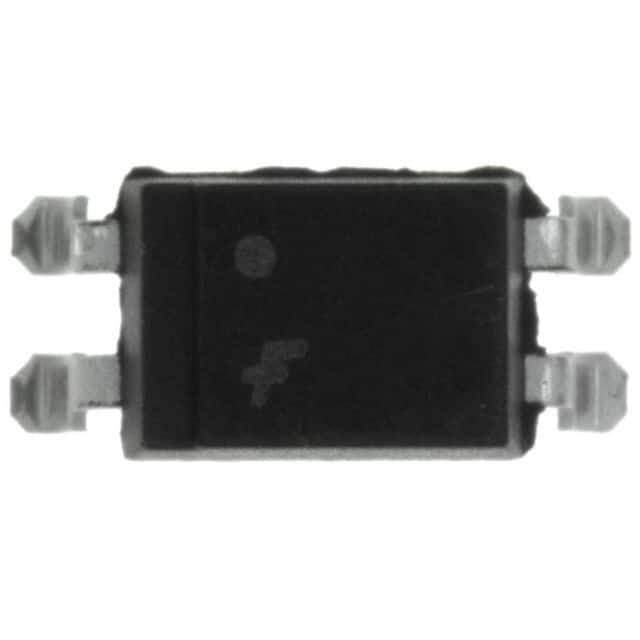

FOD814A3S

SKU: 96614

Manufacturer: onsemi

AC-IN 1-CH Transistor DC-OUT Box

1390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Output Type	DC
Input Type	AC
Output Device	Transistor
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5000
Operating Temperature-Min	-55
Operating Temperature-Max	105
Maximum Forward Voltage (V)	1.4
Collector-Emitter Voltage-Max (V)	70
Maximum Current Transfer Ratio (%)	150
Standard	UL
Maximum Collector Current (mA)	50
Maximum Collector-Emitter Saturation Voltage (mV)	200
Maximum Power Dissipation (mW)	200
Typical Forward Voltage (V)	1.2
Maximum Rise Time (us)	18
Maximum Fall Time (us)	18
Maximum Forward Current (mA)	50
Packing Method	Box
Minimum Current Transfer Ratio (%)	50
Current Transfer Ratio Test Current (mA)	1
Typical Rise Time (us)	4
