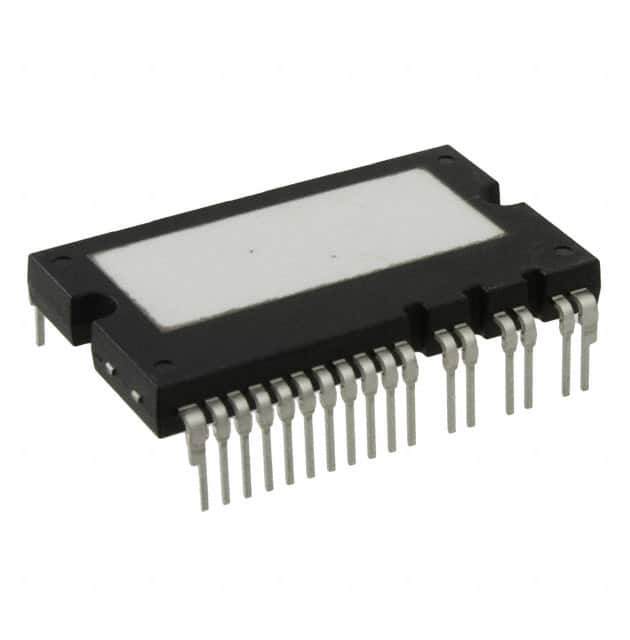

    FNC42060F

    SKU: 117895
    Manufacturer: onsemi
    IPM IGBT 600V 20A 26-Pin SPMAA-A Tube
    Download sample
    Request Free Samples
    3510 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Type IGBT
    Configuration Hex
    Number of Phases Three
    Protection Type Short Circuit/Under Voltage
    Collector-Emitter Voltage-Max (V) 600
    Typical Collector Emitter Saturation Voltage (V) 1.85
    Maximum Continuous Collector Current (A) 20
    Maximum Isolation Voltage (Vrms) 2000
    Maximum Power Dissipation (W) 50
    Operating Temperature-Min -40
    Operating Temperature-Max 150
    Packing Method Tube
    Original Package SPMAA-A
    Pin Count 26
    Terminal Form Through Hole
    Package Height 4.8(Max)
    Package Length 39.5(Max)
    Package Width 23.5(Max)
